King Canada Drill Press (w/o Acc) - 17" - 12.5 amp / KC-119FC-LS *LONG STROKE
ELECTRIC - 6" Stroke - 16-15/16" Swing - 12 Speeds - 255-2750 RPM - 3/4" Chuck - Dual Laser Guides - 45° Table Tilt - 1 HP TEFC Motor

Drill Press (w/o Acc) - 17" - 12.5 amp / KC-119FC-LS *LONG STROKE


ELECTRIC - 6" Stroke - 16-15/16" Swing - 12 Speeds - 255-2750 RPM - 3/4" Chuck - Dual Laser Guides - 45° Table Tilt - 1 HP TEFC Motor

Product #: KINKC-119FC-LS
Product is missing measurements and cannot be shipped. Please call 403-287-5340 so we can fix this issue and enable shipping.

$1,199.00 /EA
Login for contractor price
Regular: $1,199.00 /

1199

/EA

Available Online: 1
Pre Order Item
Estimated Availability Date:
Availability in Store:

Please Call for Special Orders : 403-287-5340


QTY:

ADD TO CART
BUY DIRECT

No customer reviews for the moment.

Product Description

The King Canada Long Stroke 17" Floor Drill Press with Safety Guard is built for drilling holes deeper than most 17" drill presses and for making accurate, straight holes into a variety of materials.


Power

This drill press has a 1 HP TEFC motor that can deliver 12 speeds ranging from 255-2750 RPM giving you the power to drill through a wide variety of materials.

Get 12.5 amps at 110 volts or 6.25 amps at 220 volts. This drill is also pre-wired for 110 volts.

Build

This drill press has a unique 6" long stroke that increases the drills depth capabilities making this drill press able to drill deeper holes than other 17" drill presses.

Take advantage of the dual intersecting adjustable red laser guides to help make the perfect hole every time.

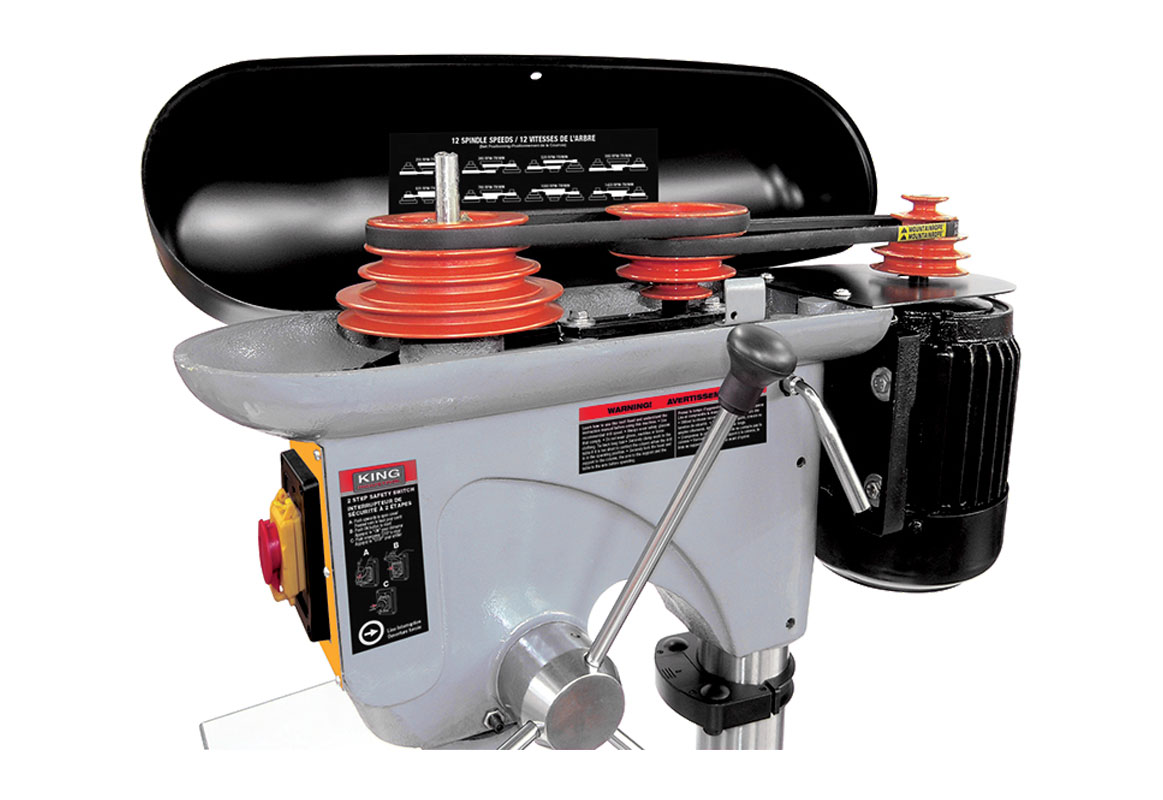

Built with cast-iron pulleys that greatly reduce any vibrations while operating this drill press.

Angled drilling is easy with the 45° titling, 14" x 14", adjustable table.

Safety

Comes with a clear safety guard to help protect you from flying debris.

The stop button is located on the front of the drill press for super fast and easy access.

There is built-in limit switch protection and a 2 step activation safety switch with line voltage interruption in case of power failure.

Made with a pivoting collar that easily can be swung out of the way eliminating any catching or twisting risks.


The following is included with this drill press:

  • 3/4" Drill Chuck
  • Spring Loaded Chuck Key
  • Knock-Out Wedge
  • Adjustment Hex Keys
Product Specifications
Vendor Part #:KC-119FC-LS
Amperage Measurement:[12.5 amps] at [110 V] and [6.25 amps] at [220 V]
Capacity:[3/4 inches]
Chuck Size:[3/4 inch]
RPM:[255-2750 RPM]
Stroke:[6 inches]
Voltage:[110 V]/[220 V] - 1 PHASE - 60Hz
Number of Speeds:12
Swing:[16-15/16 inches]
Max Distance Chuck To Column:[8-7/16 inches]
Max Distance Chuck To Table:[23-3/4 inches]
Table Size:[14 inches] x [14 inches]
Spindle Taper:MT #3
Quill Diameter:[75 mm]
Pre-Wired:[110 volts]
  • Drilling Straight and Accurate Holes
