Milwaukee Power Tools 15 Amp Panel Saw Replacement Motor
Powerful 15 A (3-1/4 max hp) Milwaukee motor (AC/DC)
15 Amp Panel Saw Replacement Motor
Powerful 15 A (3-1/4 max hp) Milwaukee motor (AC/DC)
Product #: MWT6486-20
Product is missing measurements and cannot be shipped. Please call 403-287-5340 so we can fix this issue and enable shipping.
$505.79 /EA
Login for contractor price
Regular: $505.79 /
Available Online: 0
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
Please Call for Special Orders : 403-287-5340
QTY:
BUY DIRECT
Since the company began in 1924, Milwaukee Tool has led the industry in developing innovative solutions that deliver increased productivity and unmatched durability for professional construction users. Dedicated to building advanced, trade-specific power tools, hand tools, and a wide variety of accessories for elite professionals.
No customer reviews for the moment.
Product Description

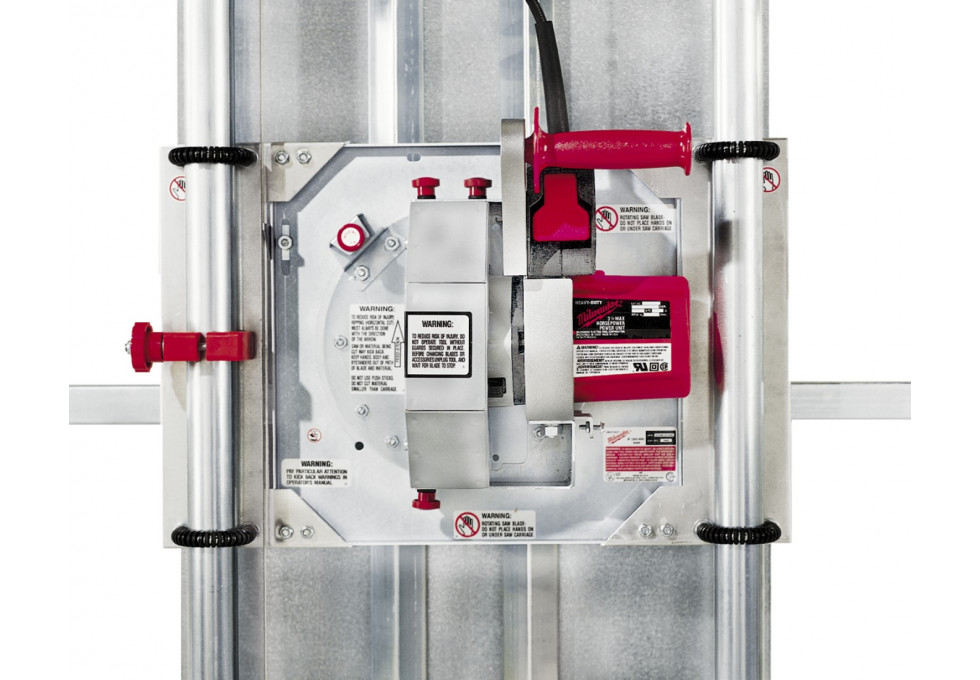

The Milwaukee 15 Amp Panel Saw Replacement Motor. Powerful 15 A Milwaukee replacement motor for the 6480-20 panel saw. Has 20 A commercial-grade paddle switch for durability and long life. Perfect tool for lumber yards, cabinet shops, etc.
Build
- Powerful 15 A (3-1/4 max hp) Milwaukee motor (AC/DC)
- 20 amp commercial-grade paddle switch for durability and long life
- For panel saw 6480-20
- Includes motor unit, industrial switch and mounting brackets
Manufacturer Warranty
- 5 Years
Approximate Item/Package Dimensions in inches
- Width: 9.800
- Height: 8.750
- Length: 15.250
Approximate Item/Package Weight in pounds
- Weight: 11.955
Product Specifications
| Vendor Part #: | 6486-20 |
| Voltage: | 120 Volts |
| MFG Part # (OEM): | 6486-20 |
| Cord Length (ft): | 4.0 |
| CSA Certified: | Yes |
| ETL Listed: | Yes |
| UL Listed: | Yes |
| Manufacturer Warranty: | 5 Years |
| Integrated Laser Guide: | No |
| Dust Blower: | Yes |
| Maximum RPM - No Load: | 5800 |
| Arbor Size (in): | 0.625 |
| Spindle Lock: | Yes |
| Saw Drive: | Direct Drive |
| Electric Motor Brake: | Yes |
| Maximum Cutting Depth (in): | 1.75 |
| Beveling Capability: | No |
| Amperage (A): | 15.0 |
| Horsepower (hp): | 3.25 |
| Blade Diameter (in): | 8.25 |
| Adjustable Depth Stops: | Yes |
| Electrical Cord Configuration: | 14 Gauge |
| Bevel Stop: | No |
| Saw Carriage Movement: | Horizontal & Vertical |
| Phase: | Single Phase |
| Maximum Crosscut Length (in): | 96.0 |
| Maximum Dado Width (in): | 0.0 |
| Maximum Degree Bevel Cut (Deg): | 0.0 |
| Maximum Rip Cut: | 48.0 |
| Frame Color / Finish: | Metallic |
| Frame Height (in): | 50.0 |
| Frame Width (in): | 60.0 |
| Guide Tube Material: | Steel |
| Clamping System: | No |
| Counter-Balanced Carriage: | Yes |
| Cut Accuracy: | To .03125 |
| Number of Dust Ports: | 1 |
| Foot Print Size - When Operational: | 4,200 |
| Foot Print Size - When Stored: | 4,200 |
| Height Stops: | Yes |
| Mid Way Fence: | Yes |
| Roller Material: | Graphite Roller Bearings |
| Router Attachment Available: | No |
| Saw Carriage Bearing Type: | Graphite |
| Scoring Blade: | No |
| Wheeled: | No |
| UPC: | 045242059461 |
