UCAN Fastening Products Concrete Wedge Anchor 5/8 x 6 Galvanized
Most suitable for static applications, and can be loaded immediately. Anchor size = hole size. *Comes with Nut and Washer.
Concrete Wedge Anchor 5/8 x 6 Galvanized
Most suitable for static applications, and can be loaded immediately. Anchor size = hole size. *Comes with Nut and Washer.
Product #: UCAWAG586
Product is missing measurements and cannot be shipped. Please call 403-287-5340 so we can fix this issue and enable shipping.
Pls.Call
Available Online: 0
Pre Order Item
Estimated Availability Date:
Estimated Availability Date:
Availability in Store:
Please Call for Special Orders : 403-287-5340
QTY:
BUY DIRECT
For over 50 years, UCAN has specialized in producing and distributing concrete anchors and other fastening products. UCAN strives to provide the most practical and cost effective solutions to meet the needs of engineers, contractors, and tradesmen.
No customer reviews for the moment.
Product Description
The UCAN Concrete Wedge Anchor 5/8 x 6 Galvanized.

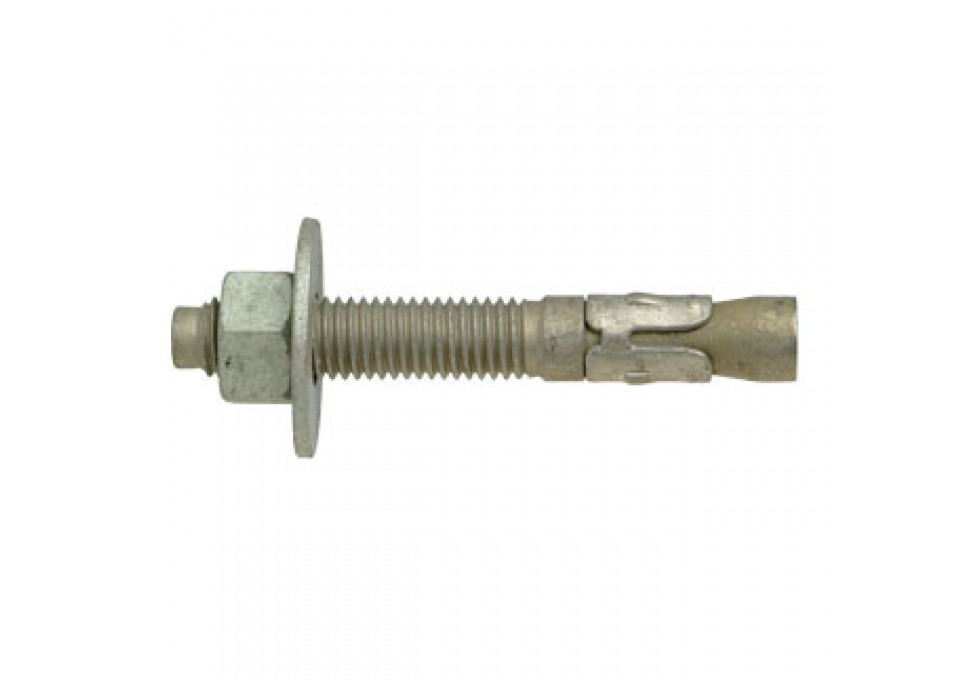

The UCAN wedge anchor is a fully threaded, high-grade, steel anchor assembled with a three-segment expansion clip. This fasteners is supplied complete with nut and washer. All parts are galvanized for extended corrosion protection. It is most suitable for static applications, and can be loaded immediately.
Features
- Fast torque up
- Anchor size = hole size
- None Bottom Bearing
- Through fastening type +1/8" clearance hold diameter required
- Fully threaded
Limitations
- Not recommended for uncured concrete (less than 7 days old), light-weight concrete, masonry block or brick.
Typical Applications
- Steel base plates
- Storage racking
- Seating
- Curtain well
- Tilt-up braces
- Mechanical equipment
- Cable trays
- Pipe support
- Brick shelf angles
| Part No. | Size | Pkg. Qty. | Case Qty. | Case Wt. | |||||
| WAG 38234 | 3/8 x 2-3/4 | 50 | 400 | 38 | |||||
| WAG 38334 | 3/8 x 3-3/4 | 50 | 400 | 51 | |||||
| WAG 12334 | 1/2 x 3-3/4 | 50 | 150 | 35 | |||||
| WAG 12414 | 1/2 x 4-1/4 | 50 | 150 | 42 | |||||
| WAG 12512 | 1/2 x 5-1/2 | 50 | 150 | 50 | |||||
| WAG 58412 | 5/8 x 4-1/2 | 25 | 75 | 37 | |||||
| WAG 586 | 5/8 x 6 | 25 | 75 | 45 | |||||
| WAG 34414 | 3/4 x 4-1/4 | 25 | 75 | 52 | |||||
| WAG 34512 | 3/4 x 5-1/2 | 20 | 60 | 50 | |||||
| WAG 347 | 3/4 x 7 | 15 | 45 | 46 |
Approximate Item/Package Dimensions in inches
- Width: 1.25
- Height: 1.25
- Depth: 6
Approximate Item/Package Weight in pounds
- Weight: 0.53
Product Specifications
| Vendor Part #: | WAG586 |
