Fluke Corporation Multimeter - Non-Contact Voltage / 117
CORDLESS - Non-contact voltage detection - AutoVolt automatic AC/DC voltage selection - Prevent false readings caused by ghost voltage with selectable low-impedance mode
Multimeter - Non-Contact Voltage / 117
CORDLESS - Non-contact voltage detection - AutoVolt automatic AC/DC voltage selection - Prevent false readings caused by ghost voltage with selectable low-impedance mode
Product #: FLU117/EFSP
Product/Order cannot be shipped because it may exceed carrier's shipping dimension requirements, is dangerous goods, can be damaged in transport, or is missing dimensions. You may contact us at 403-287-5340 for further information.
Product is missing measurements and cannot be shipped. Please call 403-287-5340 so we can fix this issue and enable shipping.
$429.05 /EA
Login for contractor price
Regular: $429.05 /
Call for price & availability : 403-287-5340
QTY:
BUY DIRECT
Fluke Corporation is the world leader in the manufacture, distribution and servicing of electronic test instruments and software.
No customer reviews for the moment.
Product Description

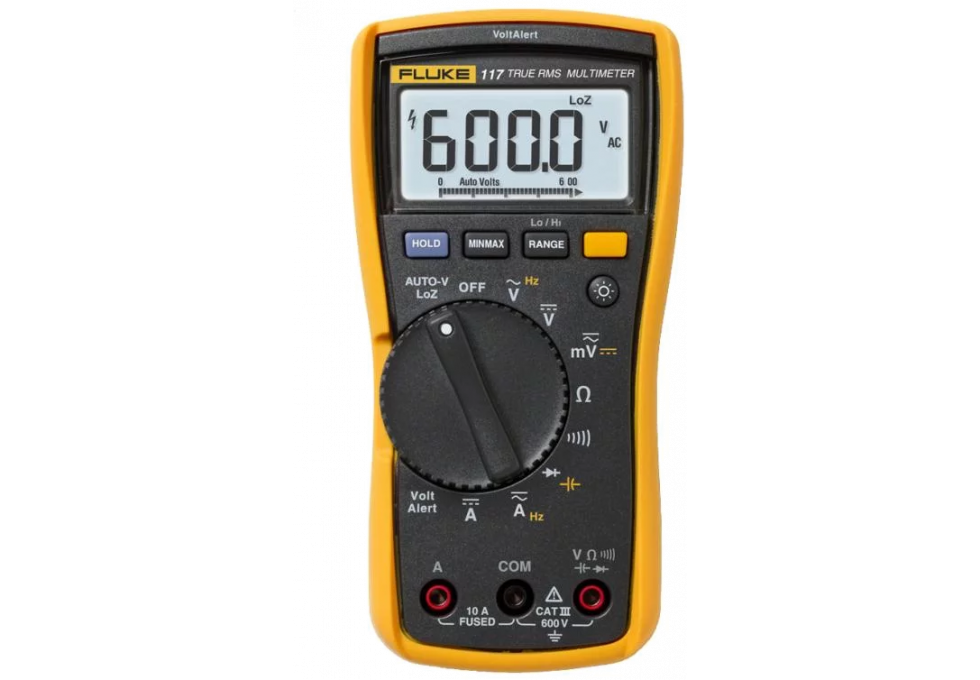

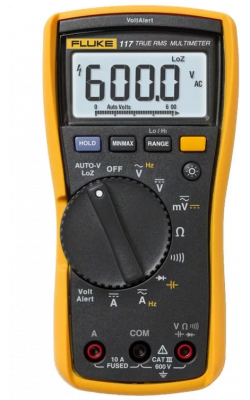

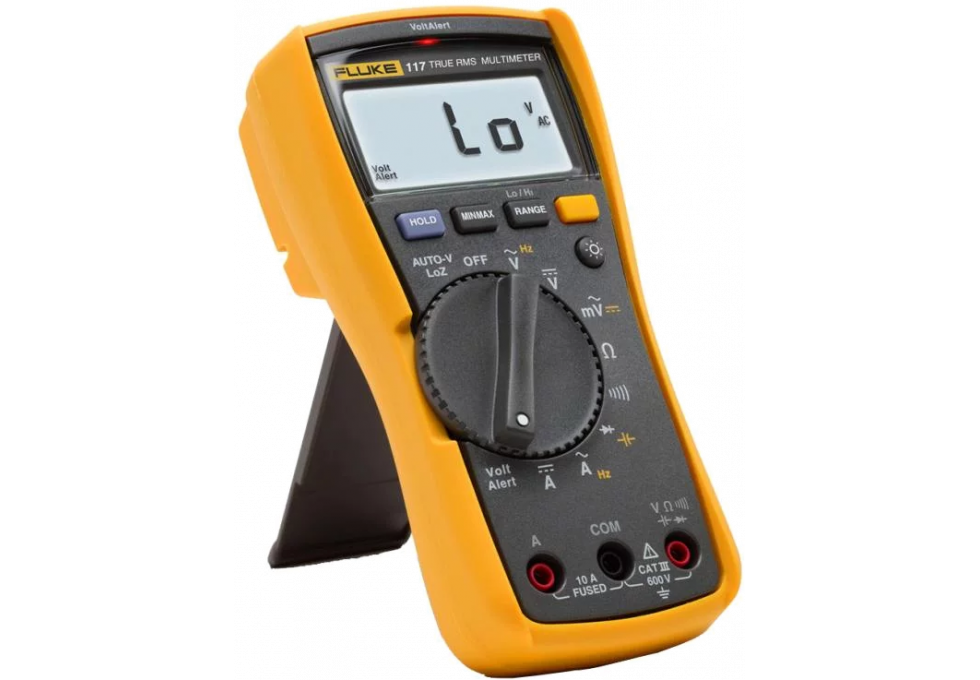

The Fluke 117 Electrician's Multimeter with Non-Contact Voltage is built with integrated non-contact voltage detection and Auto Volts and LoZ functions to help get the job done faster and prevent false readings caused by ghost voltage.
It is a compact true-rms meter for demanding applications like commercial buildings, hospitals, and schools.
Build
The Fluke 117 provides Min/Max/Average readings and measures frequency and capacitance. Plus, its easy-to-use interface can save you time and enable you to move from job to job more quickly.
- Features true-rms capabilities for accurate measurements on non-linear loads
- Accurate, easy-to-use multimeter with integrated VoltAlert™ technology for fast, go/no go non-contact voltage detection
- Features AutoVolt automatic AC/DC voltage selection
- Provides low input impedance to help prevent false readings due to ghost voltage
- Presents a large white LED backlight for working in poorly lit areas
- Measures 10 A (20 A overload for 30-seconds)
- Measures resistance, continuity, frequency, and capacitance
- Provides Min/Max/Average to record signal fluctuations
- Comes with an holster with probe holders for easy storage
- Fits into optional ToolPak™ magnetic hanger for hands-free operation
- CAT III 600 V safety rated
- A large white LED backlight to improve measurement visibility in poorly lit areas
Non-contact voltage detection!
TestingAccuracy
| DC millivolts | Range/resolution | 600.0 mV / 0.1 mV |
| Accuracy | ±([% of reading] + [counts]): 0.5% + 2 | |
| DC volts | Range/resolution | 6.000 V / 0.001 V 60.00 V / 0.01 V 600.00 V / 0.1 V |
| Accuracy | ±([% of reading] + [counts]): 0.5% + 2 | |
| Auto volts | Range/resolution | 600.0 V / 0.1 V |
| Accuracy | 2.0% + 3 (DC, 45 Hz to 500 Hz) 4.0% + 3 (500 Hz to 1 kHz) | |
| AC millivolts¹ True RMS | Range/resolution | 600.0 mV / 0.1 mV |
| Accuracy | 1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz) | |
| AC volts¹ True RMS | Range/resolution | 6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V |
| Accuracy | 1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz) | |
| Continuity | Range/resolution | 600 Ω / 1 Ω |
| Accuracy | Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of 500 μs or longer. | |
| Ohms | Range/resolution | 600.0 Ω / 0.1 Ω 6.000 kΩ / 0.001 kΩ 60.00 kΩ / 0.01 kΩ 600.0 kΩ / 0.1 kΩ 6.000 MΩ / 0.001 MΩ |
| Accuracy | 0.9% + 1 | |
| Range/resolution | 40.00 MΩ / 0.01 MΩ | |
| Accuracy | 5% + 2 | |
| Diode test | Range/resolution | 2.00 V / 0.001 V |
| Accuracy | 0.9% + 2 | |
| Capacitance | Range/resolution | 1000 nF / 1 nF 10.00 μF / 0.01 μF 100.0 μF / 0.1 μF 9999 μF / 1 μF 100 μF to 1000 μF |
| Accuracy | 1.9% + 2 | |
| Range/resolution | > 1000 μF | |
| Accuracy | 5% + 20% | |
| Lo-Z capacitance | Range | 1 nF to 500 μF |
| Accuracy | 10% + 2 typical | |
| AC amps True RMS (45 Hz to 500 Hz) | Range/resolution | 6.000 A / 0.001 A 10.00 A / 0.01 A |
| Accuracy | 1.5% + 3 20 A continuous overload for 30 seconds max | |
| DC amps | Range/resolution | 6.000 A / 0.001 A 10.00 A / 0.01 A |
| Accuracy | 1.0% + 3 20 A continuous overload for 30 seconds max | |
| Hz (V or A input)² | Range/resolution | 99.99 Hz / 0.01 Hz 999.9 Hz / 0.1 Hz 9.999 kHz / 0.001 Hz 50.00 kHz / 0.01 Hz |
| Accuracy | 0.1% + 2 | |
| 1. All AC voltage ranges except Auto-V/LoZ are specified from 1% to 100% of range. Auto-V/LoZ is specified from 0.0 V. 2. Temperature uncertainty (accuracy) does not include the error of the thermocouple probe. 2. Frequency is AC coupled, 5 Hz to 50 kHz for AC voltage. Frequency is DC coupled, 45 Hz to 5 kHz for AC current. 2. Temperature Range/Resolution: -40°F to 752°F / 0.2°F. | ||
Product Specifications
| Vendor Part #: | 117/EFSP |
| Battery Life: | [400 Hours] (without backlight) |
| Battery Requirements: | [1 9V] - Alkaline - NEDA 1604A / IEC 6LR61 |
| Depth: | [1.82 inches] |
| Display Count: | 6000 |
| Display Type: | Digital |
| Height: | [6.57 inches] |
| Operating Temperature Range: | -10°C to 50°C |
| Weight: | [1.21254 lbs.] |
| Width: | [3.31 inches] |
| Max Voltage Between any Terminal & Earth Ground: | [600 Volts] |
| Surge Protection: | 6 kV peak per IEC 61010–1 600 VCAT III, Pollution Degree 2 |
| Fuse for A Input: | 11 A, 1000 V FAST Fuse (Fluke PN 803293) |
| Display Refresh Rate: | 4 Per Second |
| Bar Graph: | 33 segments, updates 32 per second |
| Storage Temperature: | -40°C to 60°C |
