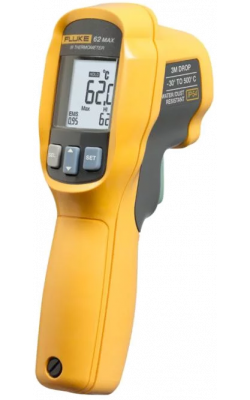

The Fluke 62 MAX Mini Infrared Thermometer is built with a single laser and 10:1 distance to spot ratio.
You can use the Fluke 62 MAX to perform non-contact temperature measurements on transformers, motors, pumps, panels, breakers, compressors, duct, steam lines, valves, and vents.
Build
The single laser helps you pinpoint the target for more accurate readings and makes it easier to measure temperatures in hard to reach areas.
With its IP54 rating for dust and water resistance you can rely the Fluke 62 MAX to deliver accurate, repeatable temperature measurements, rain or shine, in even the dirtiest and dustiest industrial sites.
And it’s rugged enough to take a 3-meter drop so no worries even if you work from a ladder.
- High and low alarms for rapid detection of temperatures outside the limits
- Powered by a single, standard AA battery.
- Comes with a three-year warranty -30-
- Withstands a 3 m (9.8 ft.) drop
- Offers small, lightweight form factor to clip comfortably to your tool belt or belt loop, or easily fit in your tool box
- Features a large, backlit display to make data easier to read, even in dark areas.
- Displays Min/Max/Avg/Dif: the minimum, maximum or average temperature, or the difference between two measurements
Small in Size & Extremely Easy to Use!
Certifications & Safety
Vibration and shock | IEC 68-2-6 2.5 g, 10 to 200 Hz, IEC 68-2-27, 50 g, 11 ms | |
EMC | EN 61326-1:2006 EN 61326-2:2006 | |
Standards and agency approval | Compliance | EN/IEC 61010-1: 2001 |
Laser safety | FDA and EN 60825-1 Class II |
Accuracy | ±1.5°C or ±1.5% of reading, whichever is greater -10°C to 0°C: ±2.0 -30°C to -10°C: ±3.0 | |
Response time (95%) | < 500 ms (95% of reading) | |
Spectral response | 8 to 14 microns | |
Emissivity | 0.10 to 1.00 |
Vendor Part #: | 62-MAX |
Battery Life: | [10 Hours] (with laser and backlight on) |
Battery Requirements: | [1 AA] |
Depth: | [2.95 inches] |
Height: | [6.88 inches] |
Operating Temperature Range: | 0°C to 50°C |
Weight: | [0.562179 lbs.] |
Width: | [3.34 inches] |
IP Rating: | IP54 |
Operating Humidity Range @ 0°C to 30°C: | 10% to 90% RH Non-Condensing |
Operating Altitude: | [2000 m] |
Temperature Range: | -30°C to 500°C |
Storage Altitude: | [12000 m] |
